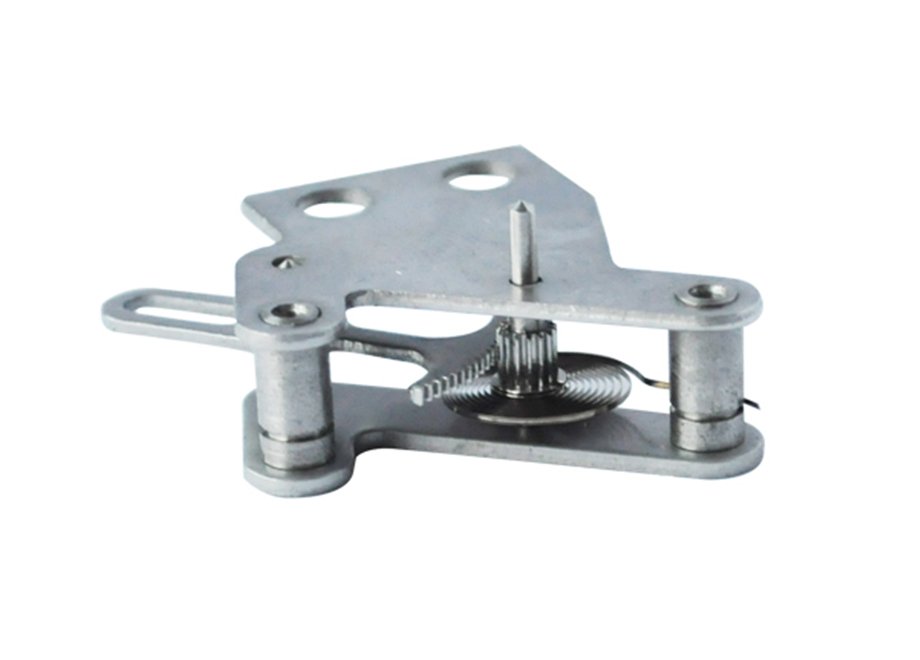

Reverse Pressure Gauge Movement FYAC60-G15B

Main technical specifications:

• Transmission ratio: 120/15=8

• Pointer shaft span: 14

• Module: 0.2

• Length of shaft extension: 4.7

• Distance between centers: 16.

• Distance between holes: 9

• Taper ratio: 1:50

• Hole diameter: 4.1

• Material of pointer shaft: Stainless steel
