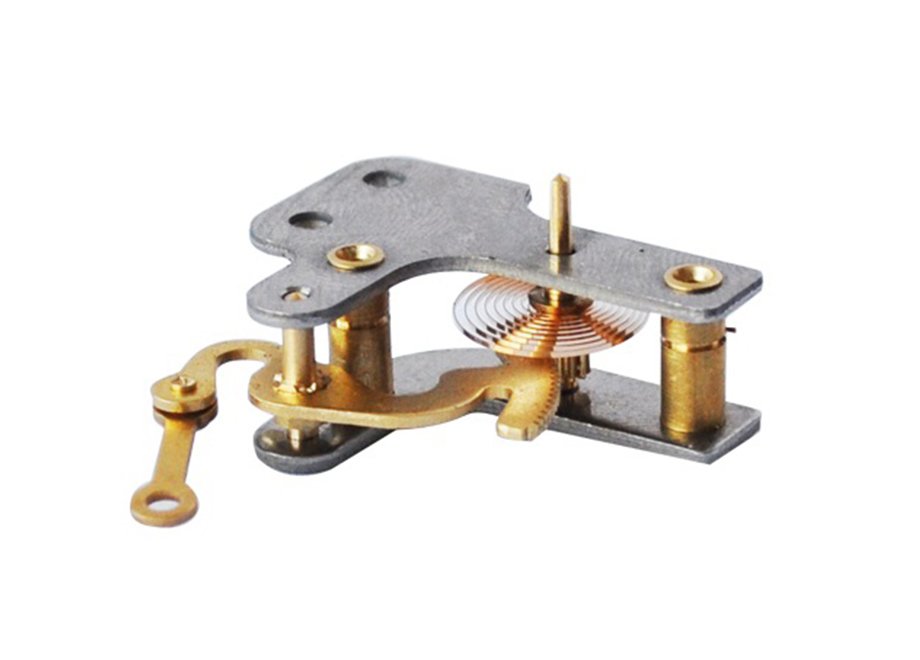

Reverse Pressure Gauge Movement FY(A)C60-H(G)16/20

Main technical specifications:

• Transmission ratio: 154/16=9.63 227/20=11.35

• Pointer shaft span: 15.6

• Module: 0.2/0.15

• Length of shaft extension: 5

• Distance between centers: 16

• Distance between holes: 8

• Taper ratio: 1:30

• Hole diameter: 2.6/3.4/4.1

• Material of pointer shaft: Lead brass/Stainless steel
