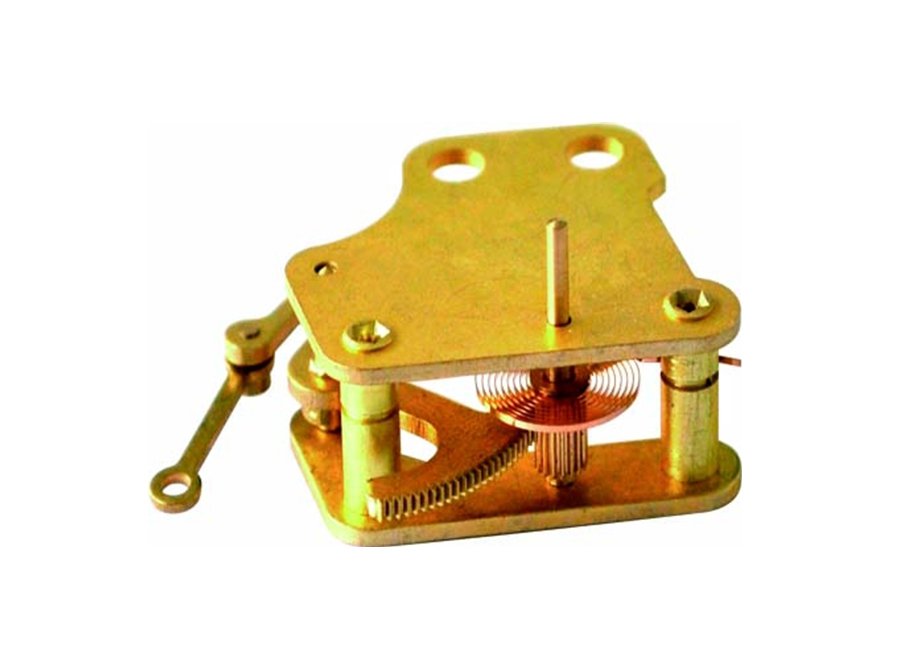

Reverse Pressure Gauge Movement FY(A)C75-H(G)17

Main technical specifications:

• Transmission ratio: 158/17=9.3

• Pointer shaft span: 15.9

• Module: 0.2

• Length of shaft extension: 5.5

• Distance between centers: 20

• Distance between holes: 10

• Taper ratio: 1:50

• Hole diameter: 4.0

• Material of pointer shaft: Lead brass / Stainless steel
