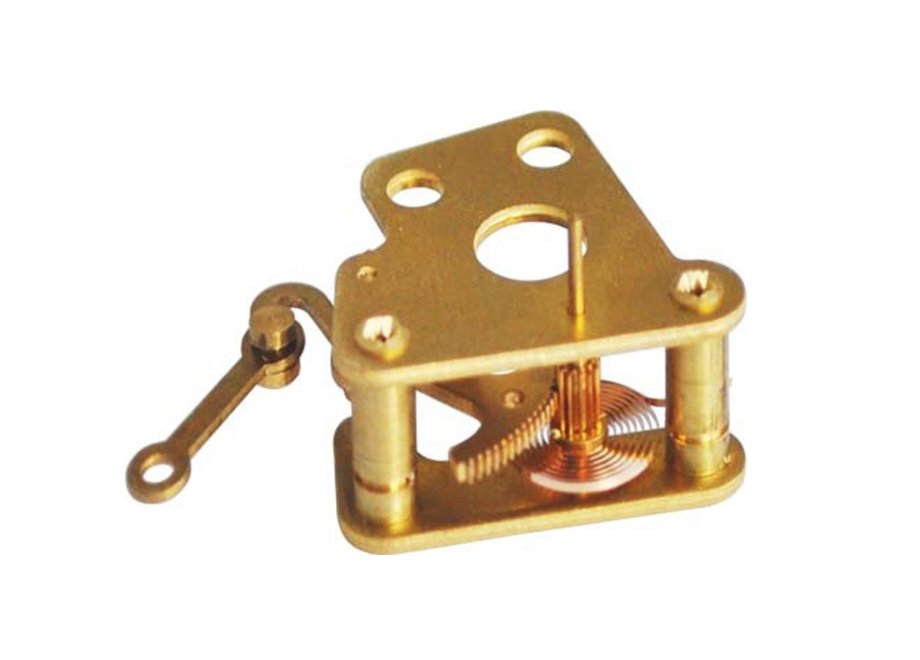

Reverse Pressure Gauge Movement FY(A)C60-H(G)12/18

Main technical specifications:

• Transmission ratio: 122/12=10.17 160/18=8.89

• Pointer shaft span: 13.3

• Module: 0.2/0.15

• Length of shaft extension: 4.4/4.7

• Distance between centers: 14.5/15

• Distance between holes: 9

• Taper ratio: 1:50

• Hole diameter: 2.6/3.1/3.5/4.1

• Material of pointer shaft: Lead brass / Stainless steel
