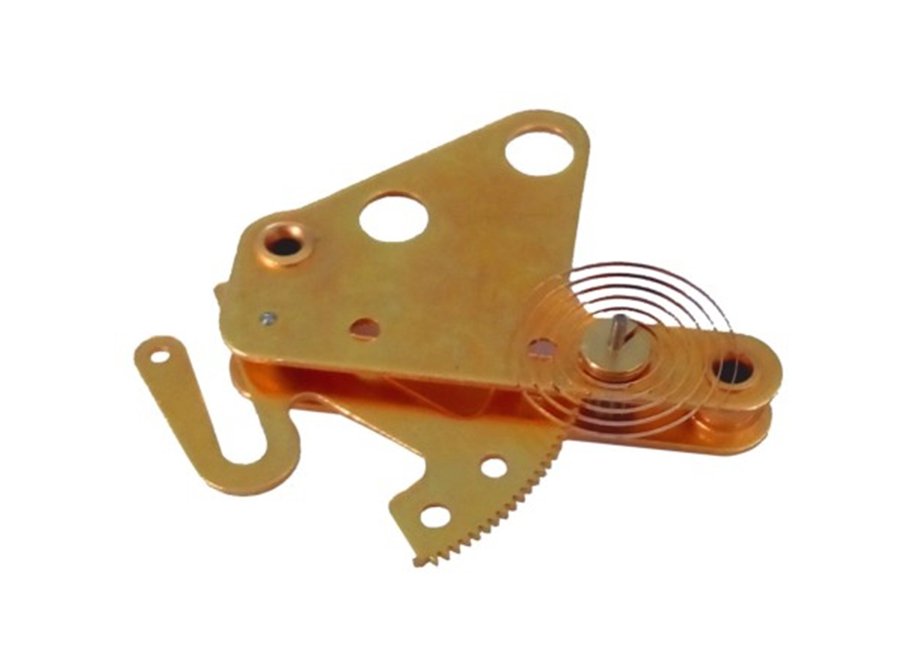

Reverse Pressure Gauge Movement FYC60-H14

Main technical specifications:

• Transmission ratio: 162/14=11.57

• Pointer shaft span: 3.3

• Module: 0.2

• Length of shaft extension: 5.3

• Distance between centers: 14

• Distance between holes: 9

• Taper ratio: 1:20

• Hole diameter: 3.6

• Material of pointer shaft: Lead brass
