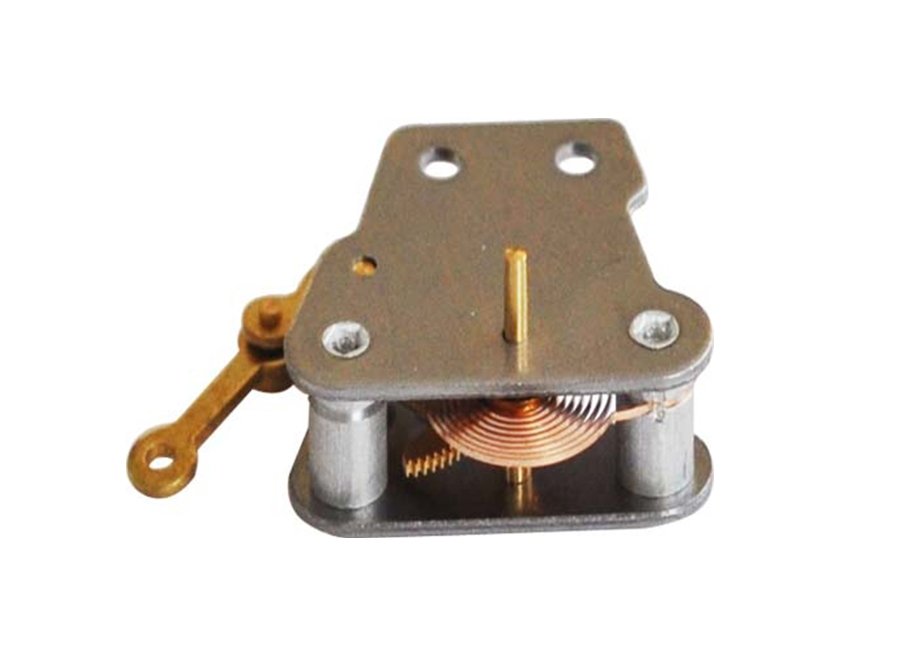

Reverse Pressure Gauge Movement FY(A)C4001

Main technical specifications:

• Transmission ratio: 107/13=8.23

• Pointer shaft span: 11.3

• Module: 0.15

• Length of shaft extension: 3.8

• Distance between centers: 12

• Distance between holes: 7

• Taper ratio: 1:20

• Hole diameter: 2.1/2.7/3.0

• Material of pointer shaft: Lead brass / Stainless steel
