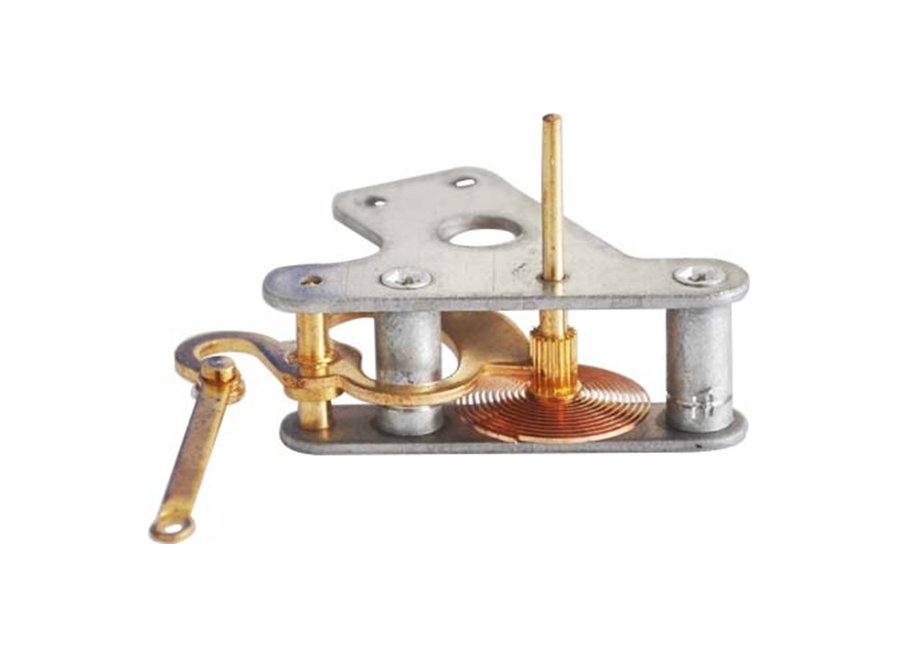

Reverse Pressure Gauge Movement FY(A)C100-H(G)18W

Main technical specifications:

• Transmission ratio: 180/18=10

• Pointer shaft span: 29.8

• Module: 0.2

• Length of shaft extension: 15.1

• Distance between centers: 23

• Distance between holes: 9

• Taper ratio: 1:50

• Hole diameter: 2.5

• Material of pointer shaft: Lead brass / Stainless steel
