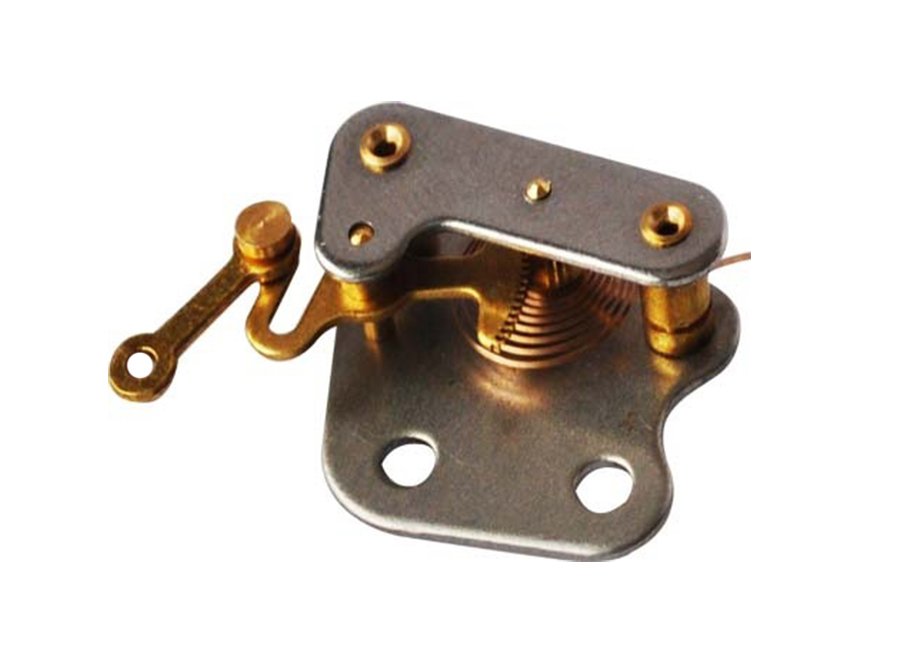

Reverse Pressure Gauge Movement FY(A)C50-H(G)13

Main technical specifications:

• Transmission ratio: 107/13=8.23

• Pointer shaft span: 11.3

• Module: 0.15

• Length of shaft extension: 3.8

• Distance between centers: 10.5

• Distance between holes: 10

• Taper ratio: 1:20

• Hole diameter: 2.1

• Material of pointer shaft: Lead brass/Stainless steel
