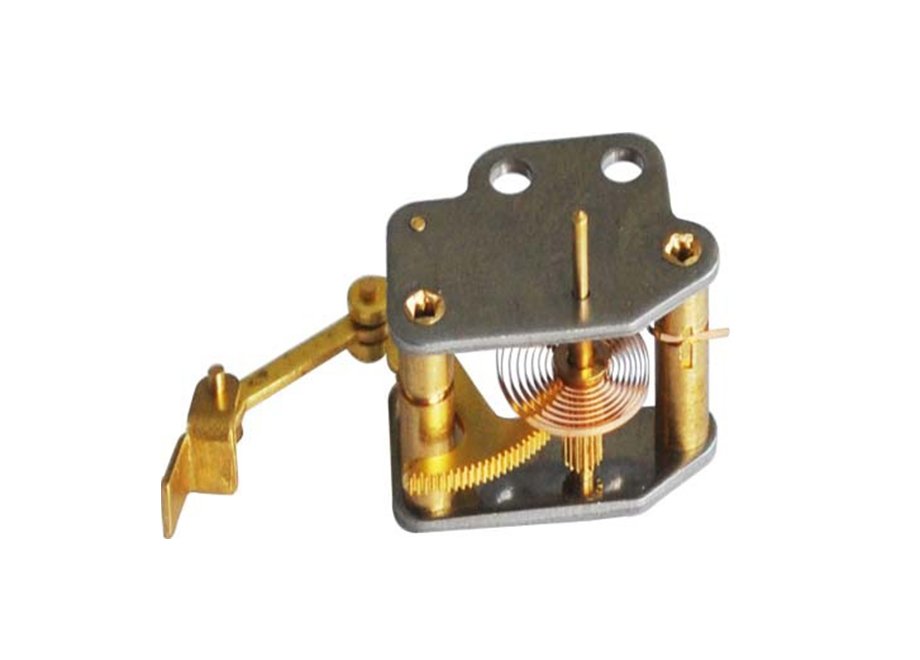

Reverse Pressure Gauge Movement FY(A)C40-H(G)14/16

Main technical specifications:

• Transmission ratio: 142/14=10.14 140/16=8.75

• Pointer shaft span: 13.3

• Module: 0.15

• Length of shaft extension: 3.9

• Distance between centers: 9.4

• Distance between holes: 7.2

• Taper ratio: 1:50

• Hole diameter: 2.1/2.7/3.0

• Material of pointer shaft: Lead brass / Stainless steel
