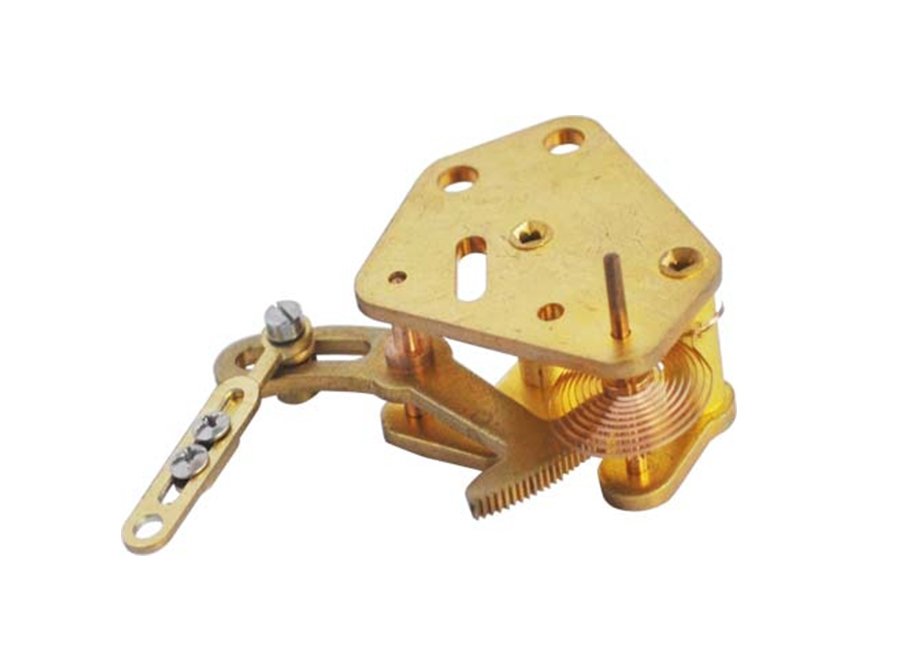

Reverse Pressure Gauge Movement FY(A)C100-H(G)14K

Main technical specifications:

• Transmission ratio: 194/14=13.86

• Pointer shaft span: 24

• Module: 0.25

• Length of shaft extension: 4.3

• Distance between centers: 32

• Distance between holes: 12

• Taper ratio: 1:50

• Hole diameter: 4.3

• Material of pointer shaft: Lead brass / Stainless steel
