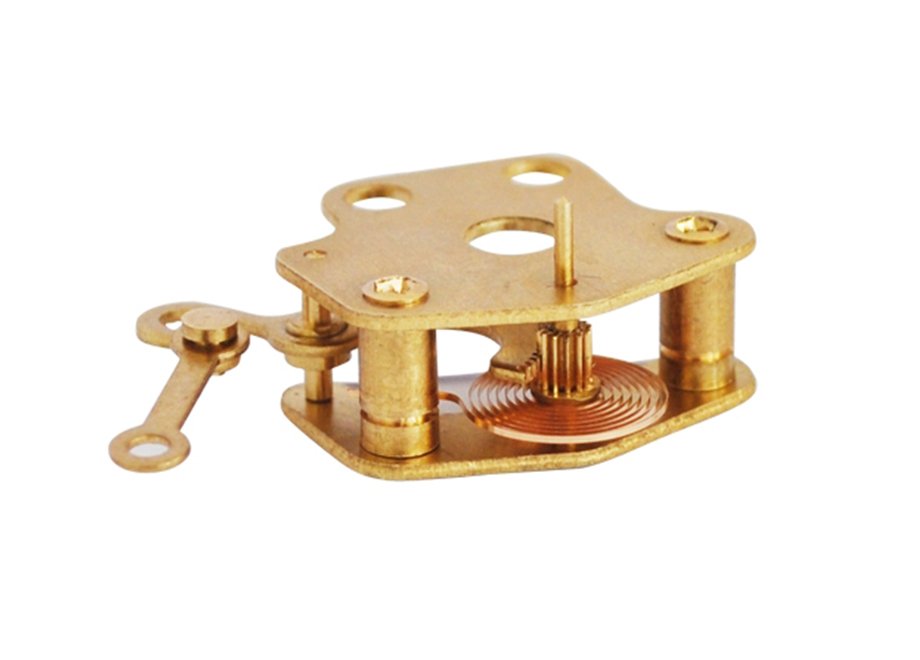

Reverse Pressure Gauge Movement FY(A)C60-H(G)12G

Main technical specifications:

• Transmission ratio: 122/12=10.16

• Pointer shaft span: 14

• Module: 0.2

• Length of shaft extension: 4.7

• Distance between centers: 15

• Distance between holes: 9

• Taper ratio: 1:50

• Hole diameter: 3.5

• Material of pointer shaft: Lead brass/Stainless steel
