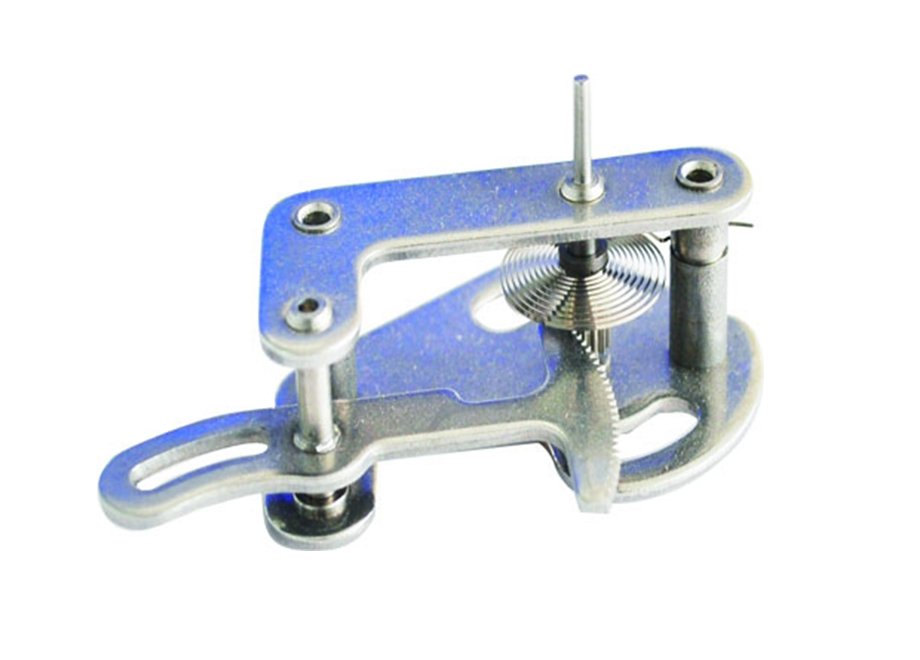

Stainless steel pressure gauge movement YAC100-G12/15H

Main technical specifications:

• Transmission ratio: 220/12=18.33 178/15=11.87

• Pointer shaft span: 24.7

• Module: 0.25

• Length of shaft extension: 9.3

• Radius sizes from shaft to holes: 17x60°x5

• Taper ratio: 1:40
