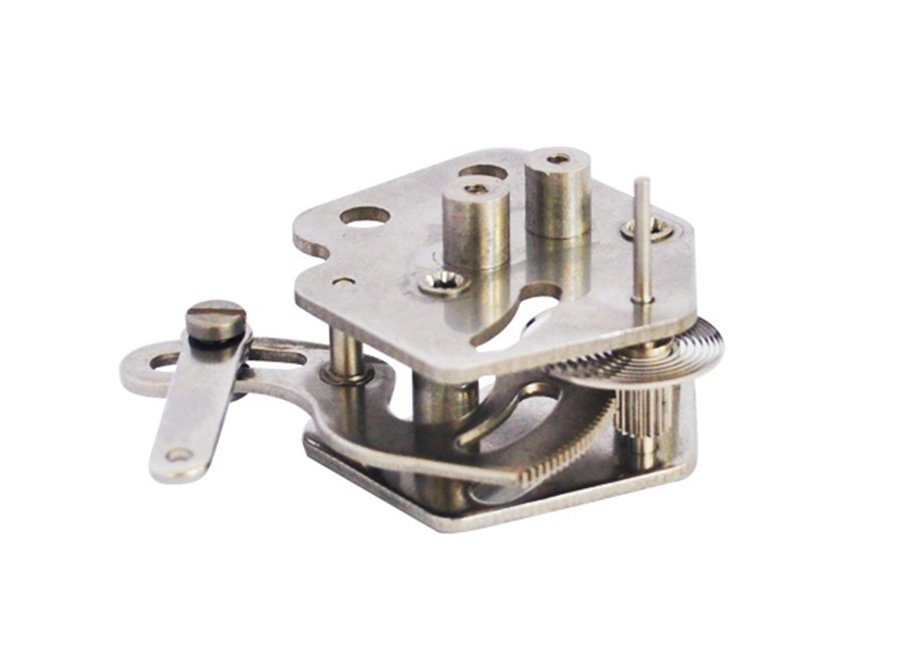

Stainless steel pressure gauge movement FYAC100-G13/17

Main technical specifications:

• Transmission ratio: 180/13=13.85; 176/17=10.35

• Pointer shaft span: 25.6

• Module: 0.25

• Length of shaft extension: 10.5

• Distance between centers: 22

• Distance between holes: 13

• Taper ratio: 1:30

• Hole diameter: 4.1
