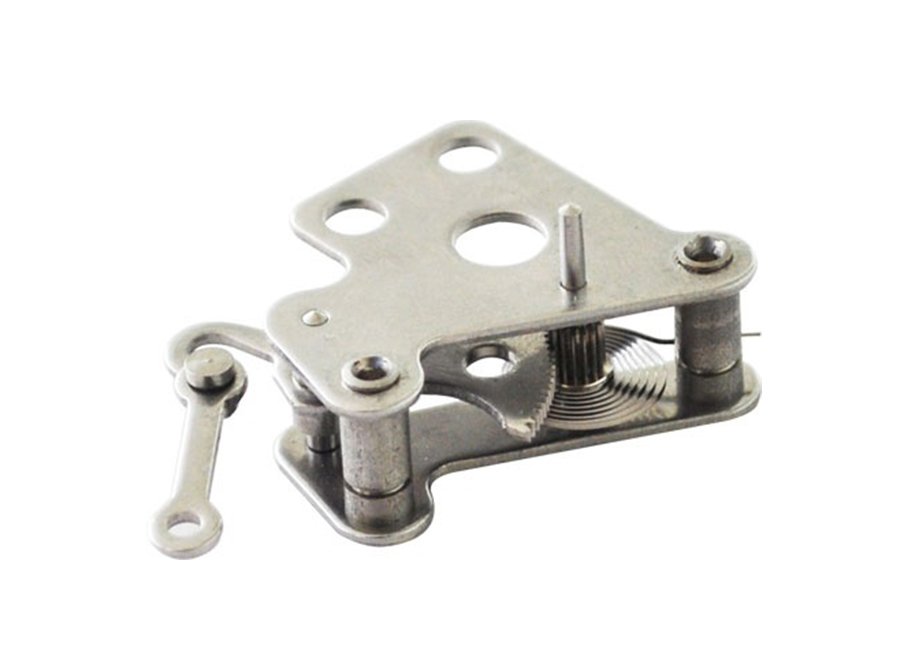

Stainless steel pressure gauge movement FYAC63-G12/15

Main technical specifications:

• Transmission ratio: 140/12=11.67 138/15=9.2

• Pointer shaft span: 14

• Module: 0.2

• Length of shaft extension: 4.7

• Distance between centers: 14.5

• Distance between holes: 9

• Taper ratio: 1:22.5

• Hole diameter: 3.7/4.3
