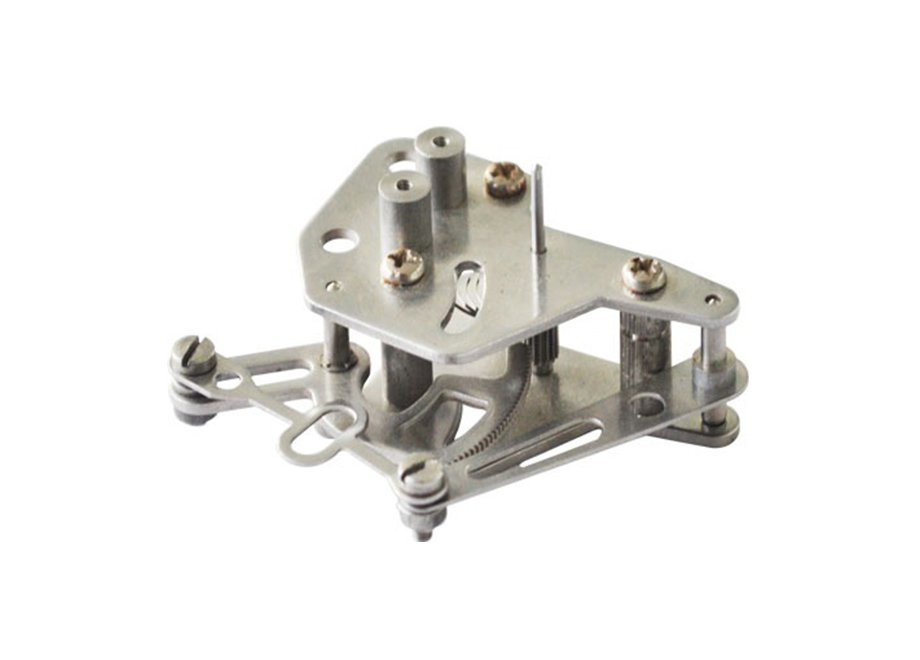

Stainless steel pressure gauge movement FYAC100-G15T

Main technical specifications:

• Transmission ratio: 178/15=11.87

• Pointer shaft span: 24.4

• Module: 0.25

• Length of shaft extension: 4.6

• Distance between centers: 22

• Distance between holes: 16

• Taper ratio: 1:30

• Hole diameter: 4.1
