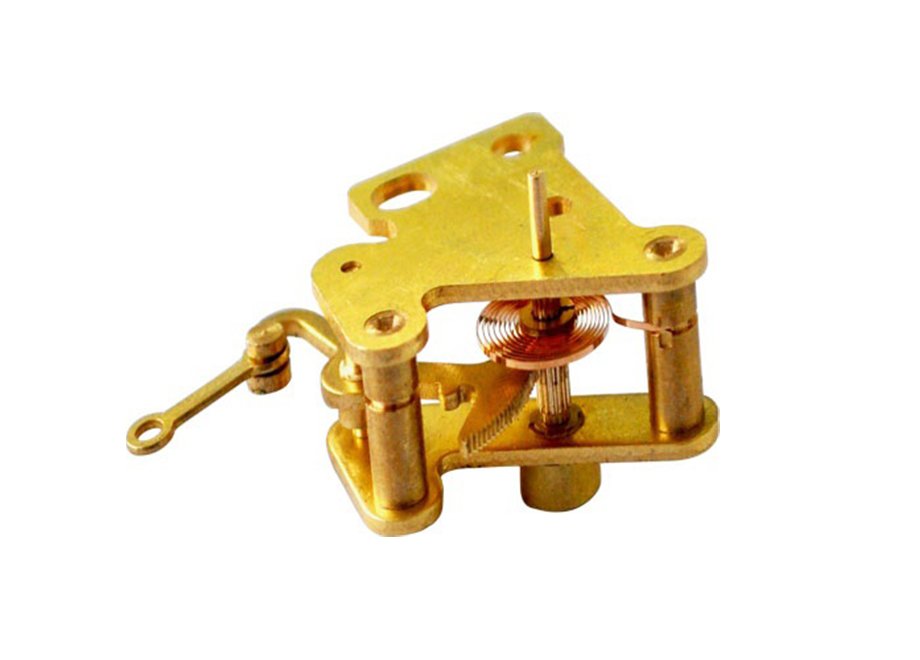

Vibration Resistant Pressure Gauge Movement YNC60-H15/20

Main technical specifications:

• Transmission ratio: 175/15=11.66 170/20=8.5

• Pointer shaft span: 17

• Module: 0.15

• Length of shaft extension: 4.7

• Distance between centers: 14.5

• Distance between holes: 9

• Taper ratio: 1:20

• Hole diameter: 3.0 (Oval hole)

• Material: Lead brass
