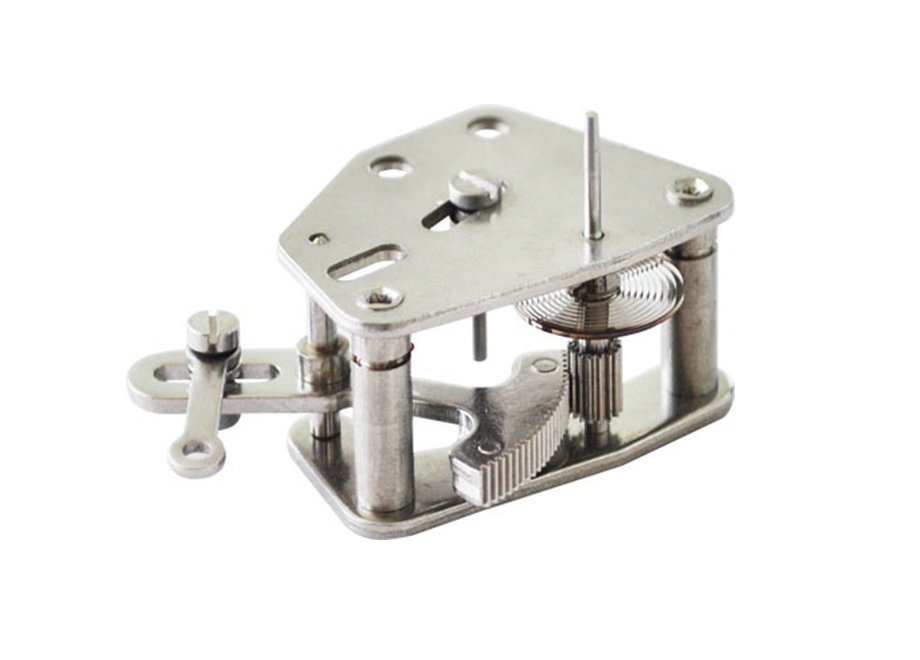

Vibration Resistant Pressure Gauge Movement FYAC100-G14/16T

Main technical specifications:

• Transmission ratio: 190/14=13.57 154/16=9.62

• Pointer shaft span: 25

• Module: 0.25/ 0.3

• Length of shaft extension: 8.9

• Distance between centers: 23

• Distance between holes: 12

• Taper ratio: 1:30

• Hole diameter: 4.2

• Material: Stainless steel
