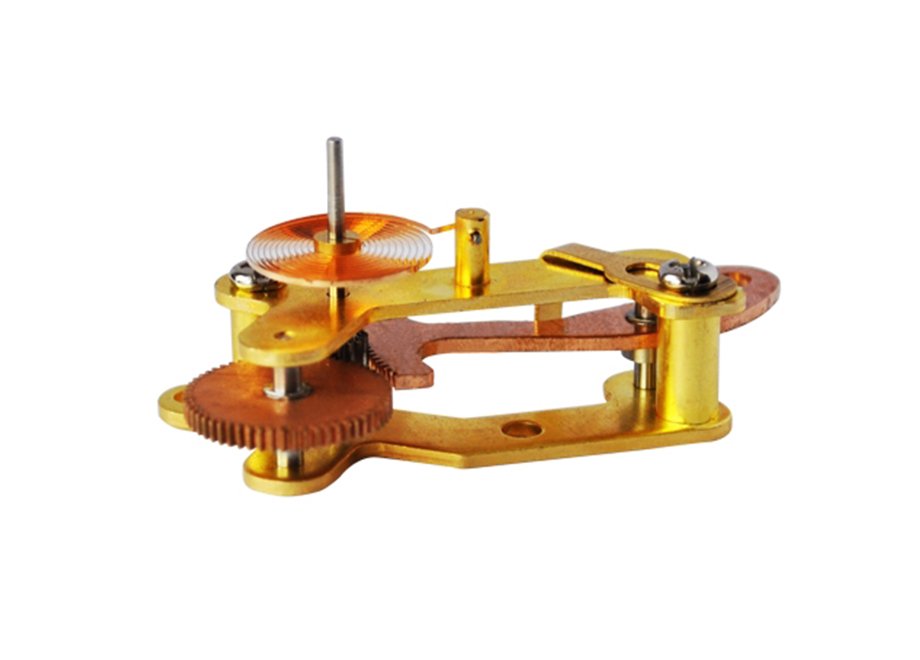

Vibration Resistant Pressure Gauge Movement YNC100-G15T

Main technical specifications:

• Transmission ratio: 174/15=11.6

• Pointer shaft span: 27

• Module: 0.3

• Length of shaft extension: 14.1

• Parallel size from shaft to holes: 30.5

• Taper ratio: 1:50

• Hole diameter: 3.5

• Material: Stainless steel
