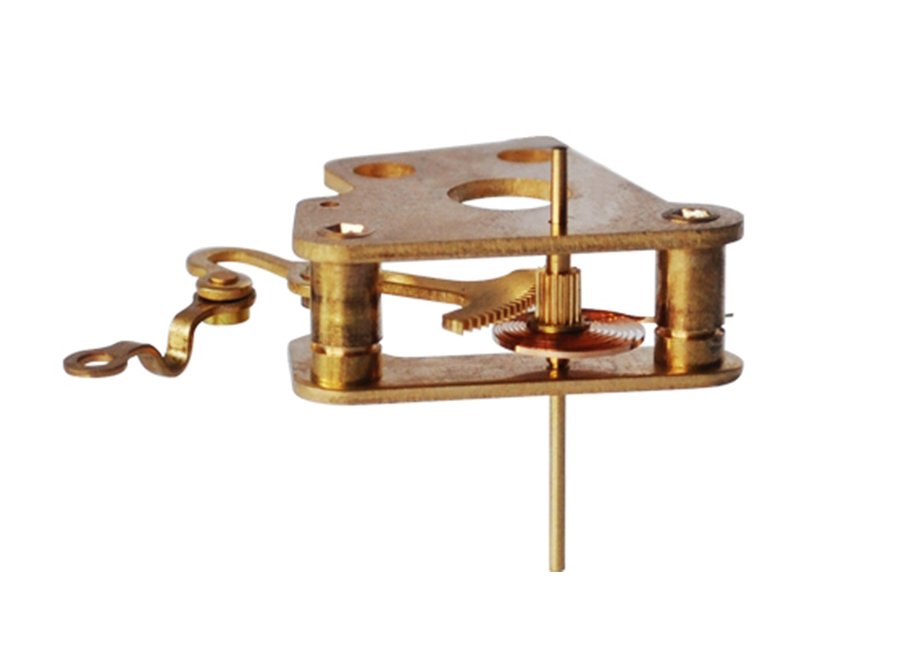

Double Cone Pressure Gauge Movement FYSC60-H16

Main technical specifications:

• Transmission ratio: 118/16=7.38

• Pointer shaft span: 25

• Module: 0.15

• Shaft extension protroding bigger splint: 4.5

• Shaft extension protroding smaller splint: 6.7

• Distance between centers: 15

• Distance between holes: 9

• Taper ratio: 1:50

• Hole diameter: 4.1

• Material: Lead brass
