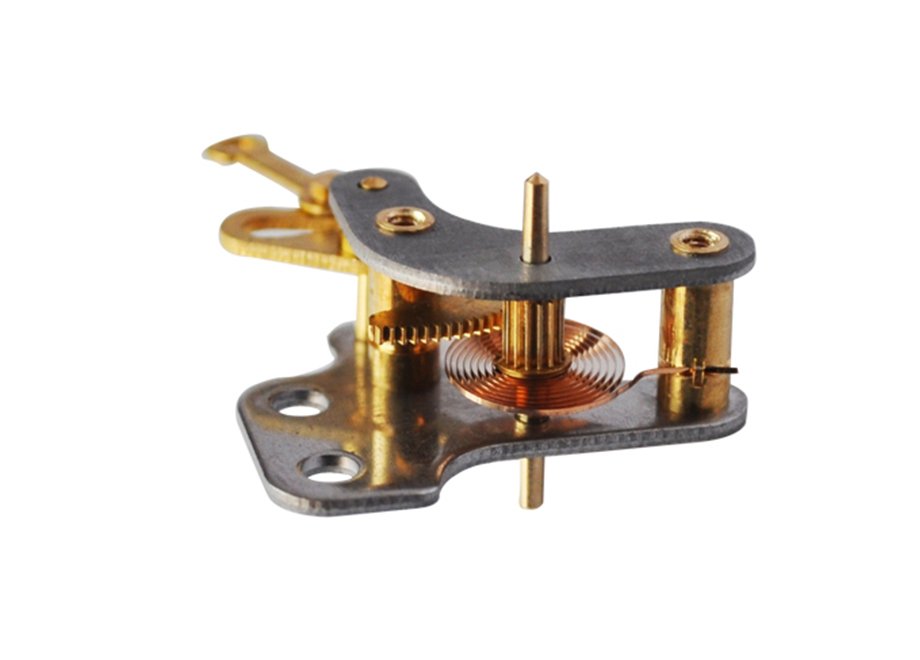

Double Cone Pressure Gauge Movement FYSC50-H15S

Main technical specifications:

• Transmission ratio: 115/15=7.66

• Pointer shaft span: 19.7

• Module: 0.2

• Shaft extension protroding bigger splint: 4.3

• Shaft extension protroding smaller splint: 4.9

• Distance between centers: 12

• Distance between holes: 8

• Taper ratio: 1:30

• Hole diameter: 3.1/3.4

• Material: Lead brass
