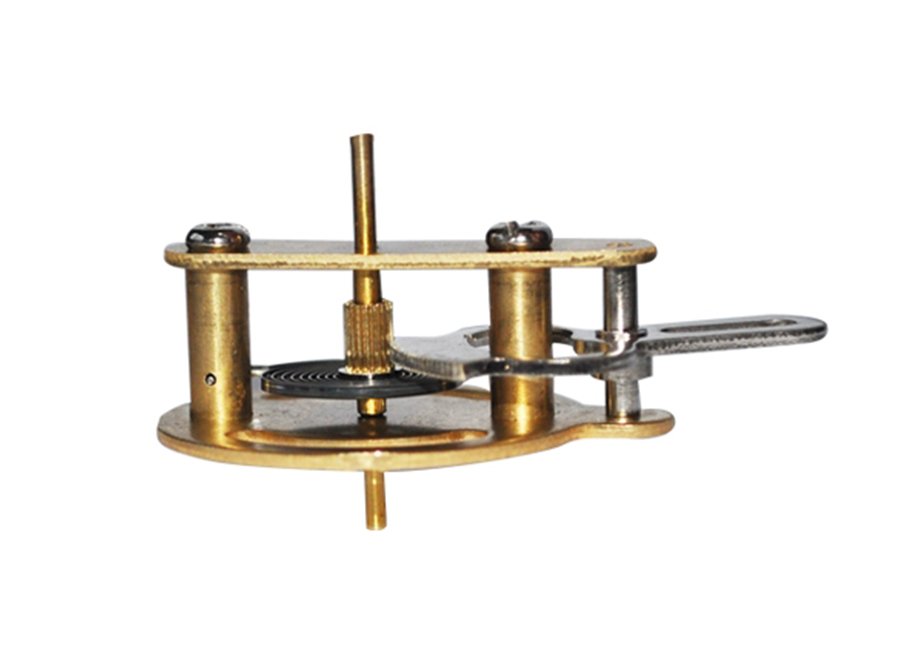

Double Cone Pressure Gauge Movement FYSC100-H18

Main technical specifications:

• Transmission ratio: 180/18=10

• Pointer shaft span: 34.9

• Module: 0.2

• Shaft extension protroding bigger splint: 8.1

• Shaft extension protroding smaller splint: 12.3

• Radius sizes from shaft to holes: 12x90o

• Taper ratio: 1:50

• Hole diameter: 3.4

• Material: Lead brass
