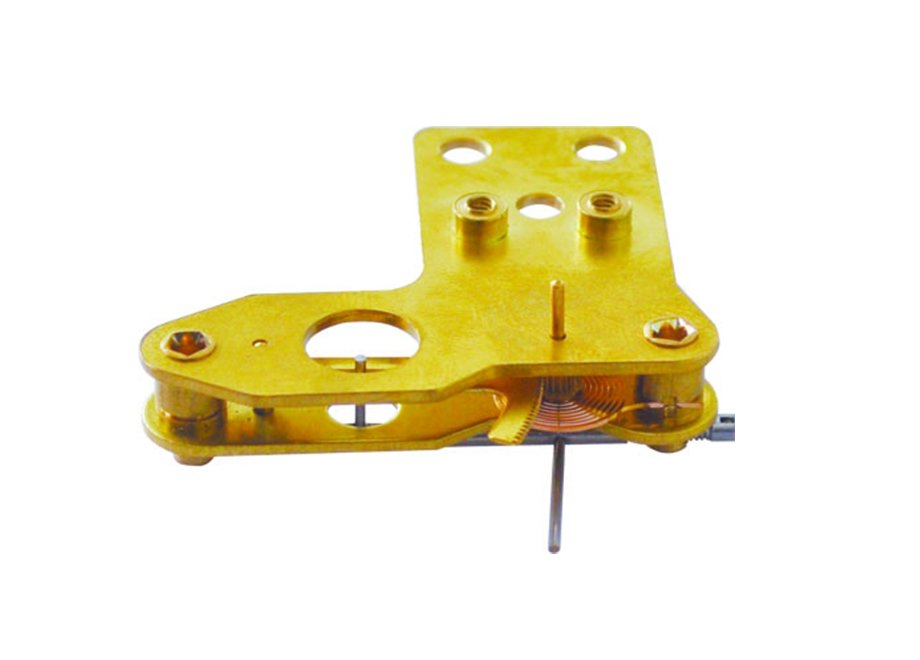

Capsule pressure gauge movement FYEC75-H15S

Main technical specifications:

• Transmission ratio: 261/15=17.4

• Pointer shaft span: 11.6

• Module: 0.15

• Length of shaft extension: 4.8

• Distance between centers: 25.5

• Distance between holes: 10

• Taper ratio: 1:50

• Hole diameter: 3.5

• Material: Lead brass
