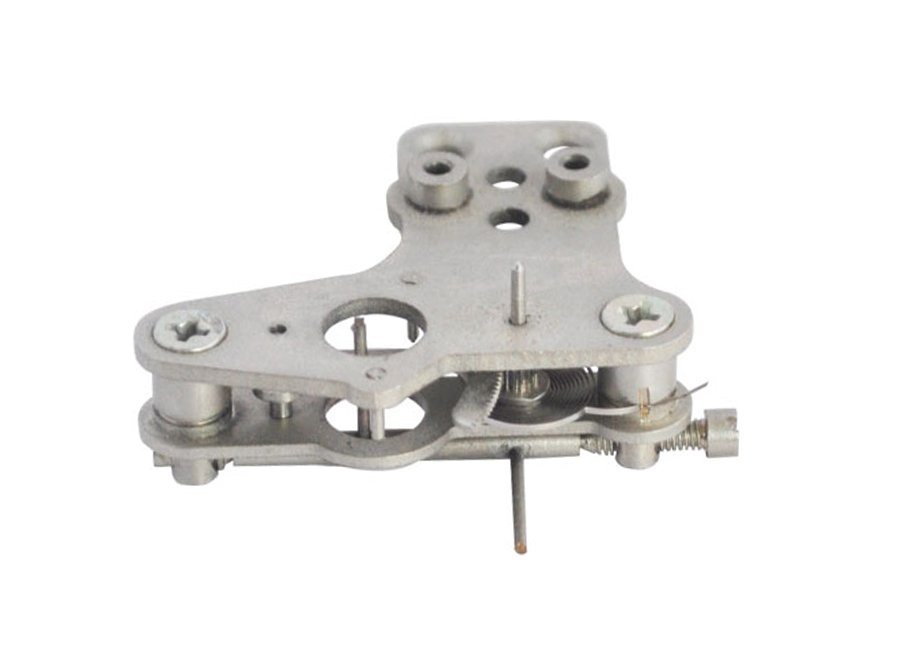

Capsule pressure gauge movement FYEC50-H14

Main technical specifications:

• Transmission ratio: 186/14=13.28

• Pointer shaft span: 10.7

• Module: 0.15

• Length of shaft extension: 4.0

• Distance between centers: 21

• Distance between holes: 8.0

• Taper ratio: 1:30

• Hole diameter: 3.0

• Material: Lead brass
