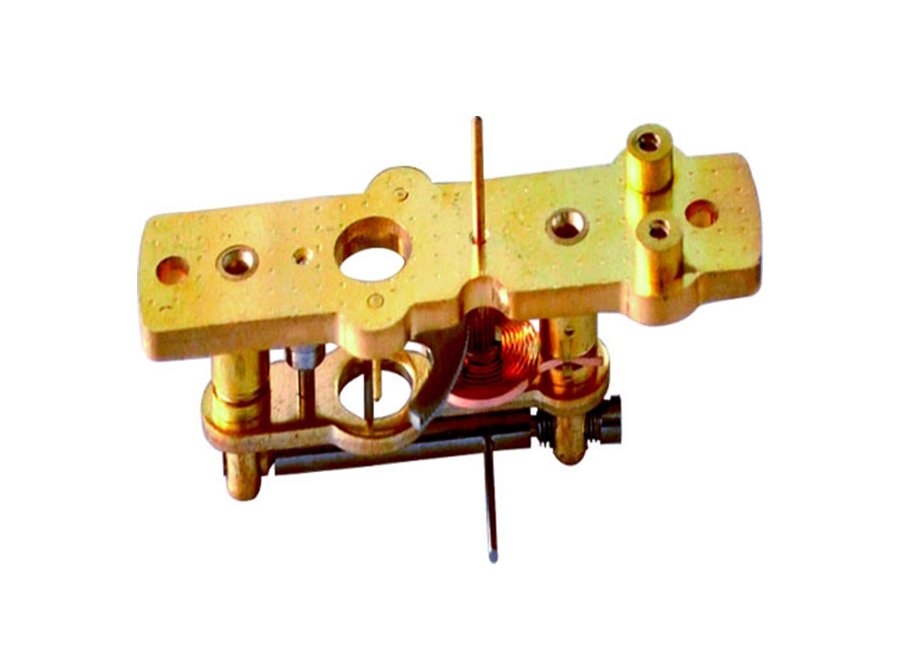

Capsule pressure gauge movement FYEC75-H14

Main technical specifications:

• Transmission ratio: 186/14=13.29

• Pointer shaft span: 13.7

• Module: 0.15

• Length of shaft extension: 5.5

• Parallel size from shaft to holes: 45

• Taper ratio: 1:30

• Hole diameter: 2.7

• Material: Lead brass
