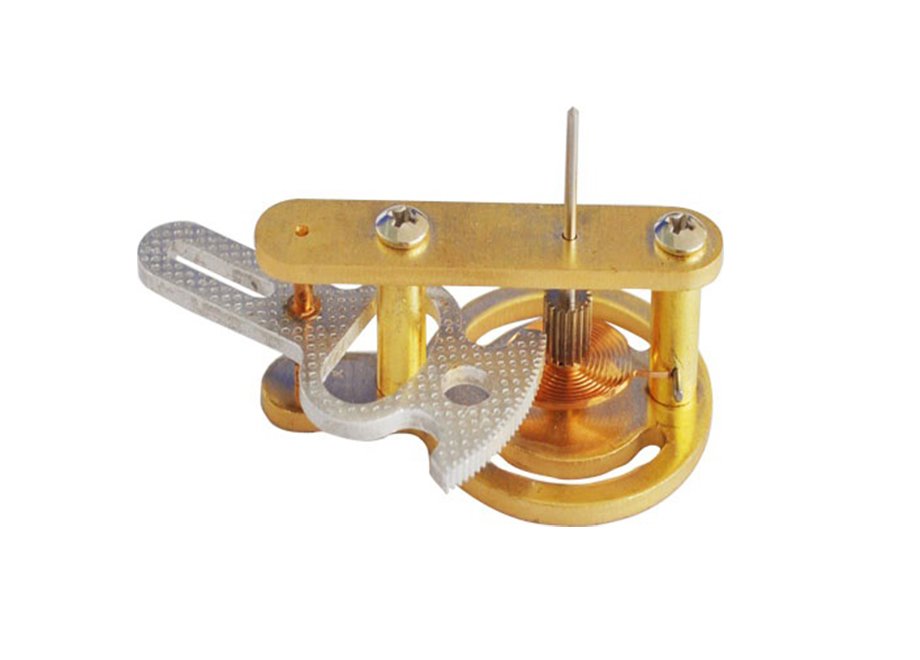

High precision pressure gauge movement YBC150-G18

Main technical specifications:

• Transmission ratio: 194/18=10.78

• Pointer shaft span: 26.9

• Module: 0.3

• Length of shaft extension: 11.7

• Radius sizes from shaft to holes: 13x106°x3.4

• Taper ratio: 1:30

• Material: Stainless steel
