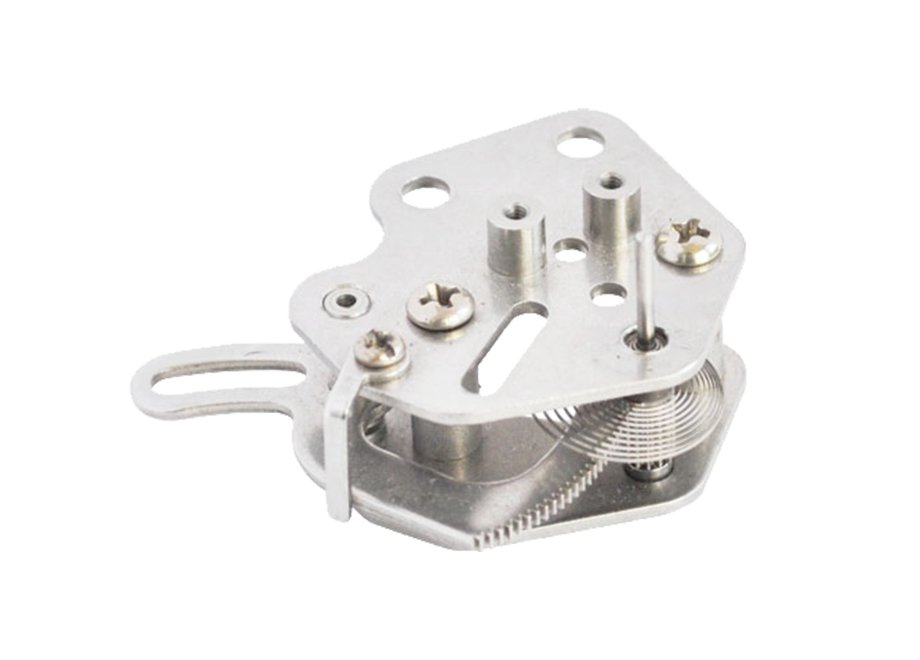

High precision pressure gauge movement FYBC100-G11/14

Main technical specifications:

• Transmission ratio: 161/11=14.63 158/14=11.28

• Pointer shaft span: 24.8

• Module: 0.3

• Length of shaft extension: 9.5

• Distance between centers: 27

• Distance between holes: 15

• Taper ratio: 1:30

• Hole diameter: 4.1

• Material: stainless steel
