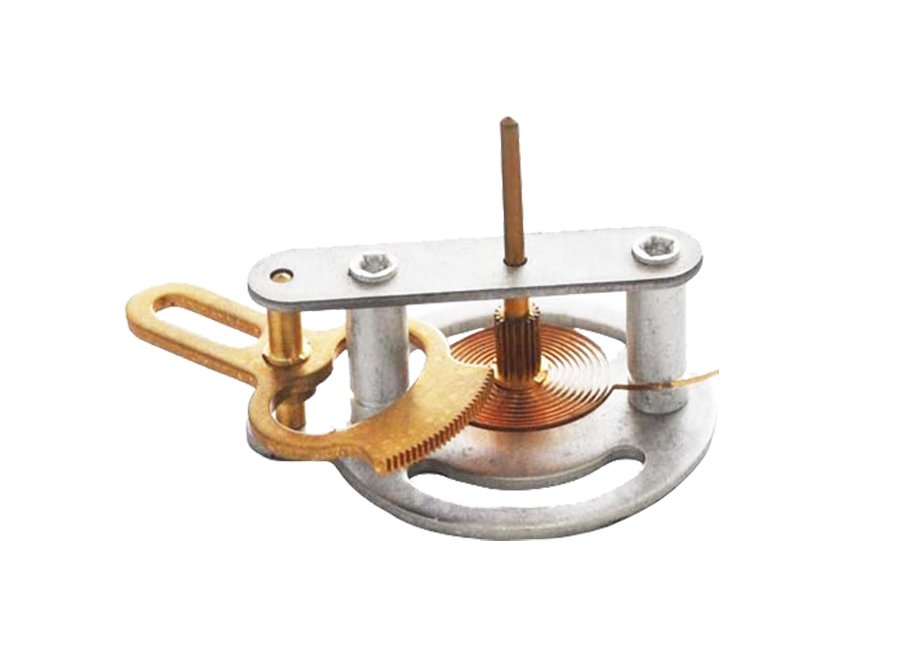

Forward pressure gauge movement Y(A)C100-H(G)12/14/18

Main technical specifications:

• Transmission ratio: 120/12=10 184/14=13.14 180/18=10

• Pointer shaft span: 26.9

• Module: 0.3/0.2

• Length of shaft extension: 12.5

• Radius sizes from shaft to holes: 12x90°x3.4

• Taper ratio: 1:50

• Material of pointer shaft: Lead brass / Stainless steel
