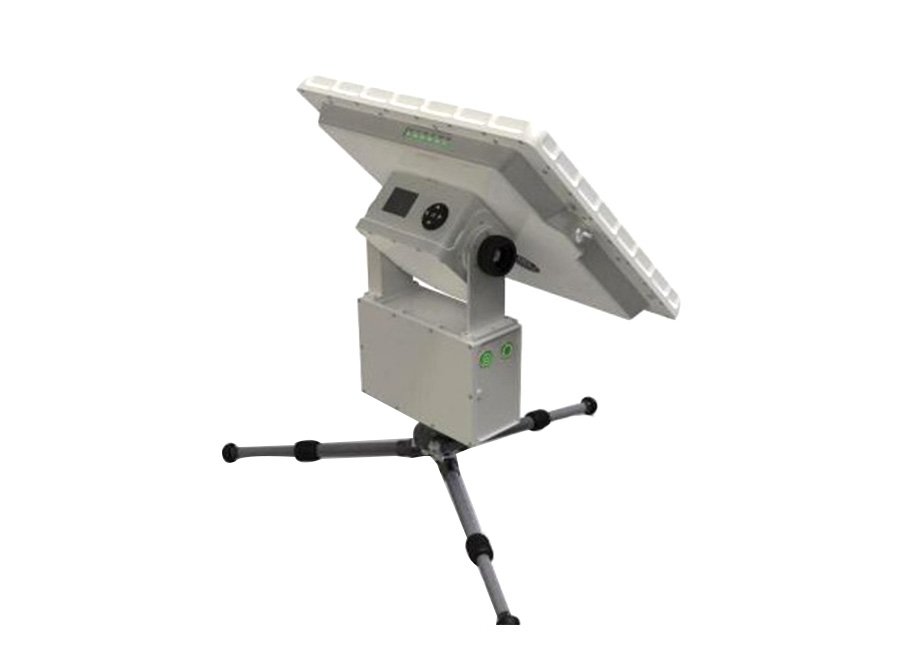

The portable intelligent satellite terminal (SKY-35) is a Ku band portable, highly integrated and intelligent satellite communication terminal that supportshigh-throughput satellites and traditional satellites. The terminal adopts Ku band flat antenna, and is internally integrated with satellite communication modem, RF components, Wi-Fi router, etc.
To provide high-speed network services. The equipment is equipped with inertial navigation, magnetic heading, GPS/BD reception, and intelligent search algorithm to quickly point the target satellite.
This product is simple and easy to use, with reliable functions.
After being connected to the network, it provides high-performance, uninterrupted communication capabilities, and is suitable for various applications such as high-definition video streaming, high-capacity data transmission, tactical or emergency communication.
Features
● Flat antenna surface, no assembly, small collection volume, easy to carry.
● Higher integration, Higher speed, direct satellite high-speed Internet access service.
● Built in multiple sensors, fast and convenient to use.
● With screen, it can quickly display current parameters and satellite data, and it is convenient to point the satellite.
● The equipment is small in size and weighs no more than 7Kg, which is easy to use.
Specifications
Antenna Characteristics | ||
Tx | Rx | |
Frequency | 13.75~14.5GHz; | 10.7~12.75GHz； |
Gain | 32.5dBi@12.50GHz | |
Polarization | Linear polarization/Automatic adjustable | |
Transceiver | 16W BUC/PLL LNB | |
Antenna Type | High-efficiency planar array Dual polarized waveguide horn planar array | |
Physical Characteristics | ||
Azimuth Angle | Unlimited | |
Elevation Range | 12° ~90° | |
Polarisation | ±90° | |
Tracking Accuracy | 0.1°R.M.S. | |
Deployment and Acquisition | ≤2min ，From turning on to satellite locking | |
Battery Life | 172Wh, Continuous transmission (Less than 2 hours) | |
Weight | ≤7 Kg (The whole machine) | |
Collection Size | 354×334×150mm | |
Control Mode | Web/one-touch | |
Electrical Characteristics | ||
Power Supply | 9~24V DC ，90W | |
Environmental Characteristics | ||
Wind Speed | Work: 55km/h, Survive: 72km/h | |
Temperature | Operating: -25°C ~ +55°C, Storage: -40°C ~ +70°C | |
Humidity | 0 to 100% (condensation) | |
Protection Level | IP66 | |
